1. Product features
L adopts ultra clear 1920 * 1080 resolution LCD panel, 178 ° all-round viewing angle, high color gamut, with special performance such as 3D digital noise reduction, dynamic contrast adjustment, intelligent elimination of residual images, etc., for a more perfect restoration.
Industrial grade power system, self regulating heat dissipation, meets 24-hour uninterrupted use, LED twin crystal backlight source, higher brightness, lower power consumption.
A high-performance quad core processor with a clock speed of 1.8GHz, featuring powerful 3D accelerated graphics processing and 2060P video decoding capabilities. With efficient processing speed, it provides extremely smooth video playback performance.
Adopting the G G projection capacitive touch solution, it has high stability, no drift due to changes in time and environment, high transparency, sensitive response, and no delay.
Real time video and audio decoding; Real time video and audio playback; Compatible with multiple image, animation, and audio encodings, supports centralized control through TCP/IP networks, and can be distributed across the country based on the Internet, achieving super information dissemination through wide area networks and more efficient operational efficiency.
Integrated design: The product design is simple and atmospheric, more aesthetically pleasing, cost-effective, supports wall mounted and horizontal installation, easy to install and maintain, industrial grade components, better heat dissipation, lower power consumption, metal front frame design, fine workmanship, and humanized detail design.
The workshop fully adopts advanced IOS9001 solution management, and can customize the shell shape, body color, and add logo according to customer requirements.
Featured Installation
Provide multiple installation methods to meet the installation needs of various industries. The basic models include wall mounted, sloping floor standing (with floor standing K-type/S-shaped base), and vertical screen floor standing.
2. Product Features
| function |
describe |
| Material support |
Images, videos, text, web pages, weather, time, news, RSS text, documents, etc |
| Play mode |
Automatic playback upon startup, supporting program looping, timed, offline, and priority specified playback |
| Arbitrary split screen |
The program screen supports visual multi area editing, and can be split into any screen. Video, images, and other materials can be scaled and moved to any area for flexible production. |
| interactive programme |
You can set whether a certain program area will trigger the next jump action after being clicked or touched. You can choose to turn off interaction, swipe, previous program, exit interaction, or connect sub programs. |
| Remote management |
It is possible to perform graded partition management on the playback end, with no limit on the number of partitions. Being able to remotely query logs and view screens on the playback end, it can promptly detect possible playback end failures or network anomalies. Ability to remotely standby, wake up, restart, adjust volume, take real-time screenshots, etc. on the playback end, and remotely set the playback end to turn on and off at scheduled times; |
| Multi machine synchronization |
By simple operation, multiple advertising machines can automatically synchronize and play the same program in the same network segment. Through software settings, there is no need to increase hardware costs |
| Rights Management |
The system has a strict user permission management mechanism, which can be limited to each functional module, and users can be assigned to any terminal. The same terminal can be managed by multiple users simultaneously; The central information management system adopts a B/S architecture, and management personnel only need to access the program production and editing system through a WEB page; |
| Terminal monitoring |
Real time monitoring of the network connection status and on/off status of each terminal, and monitoring of the real-time status of downloading program files from the terminal; And it can monitor the execution status of the terminal after each instruction is issued, and monitor the real-time playback of the terminal screen; Ensure the stability of terminal operation; |
| Program scheduling |
Multiple programs can be simultaneously released to the terminal, which plays them in order of program priority and playback time; |
| Remote Upgrade |
Remote daily maintenance and system upgrades can be performed on the terminal. The terminal cleaning function system supports intelligent cleaning function, which can automatically clean files that are no longer in use or manually clear stored content; |
| standalone mode |
The terminal supports importing programs through USB flash drives or playing them directly. Program packages are considered encrypted programs by default. When setting a password on the terminal, the program password must match the terminal password |
| Rights Management |
The system has a strict user permission management mechanism, which can be limited to each functional module, and users can be assigned to any terminal. The same terminal can be managed by multiple users simultaneously; The central information management system adopts a B/S architecture, and management personnel only need to access the program production and editing system through a WEB page; |
| STATISTICS |
It can perform log statistics on all user operations, including all programs and the number of times scenes, pictures, and videos were played during a certain period of time, as well as the online duration of the terminal; Load distribution supports a multi server distribution management mechanism for future system expansion; |
| resume |
When the publishing process is disconnected due to network failure, the network can be restored and the breakpoint can be resumed without the need for re publishing |
| system backup |
Used to save historical data. When the server crashes due to unpredictable software and hardware failures, historical backup data can be used for system data recovery. It supports manual backup and automatic backup, with automatic backup at 3am on the 1st of each month |
| Terminal encryption |
You can set a backend password for a terminal. Once the password is set, a password input interface will pop up every time you enter the terminal settings interface. |
3. Technical parameters
| type |
Parameters/Description |
|
| display |
Display Size |
21.5” |
| DISPLAY AREA |
476.5(H)X268(V) MM |
|
| display scale |
16:9 |
|
| Backlight |
ELED |
|
| resolution |
1920*1080pixels |
|
| brightness |
300cd/㎡ |
|
| contrast ratio |
1000:1 |
|
| colour |
16.7M |
|
| viewing angle |
89°/89°/89°/89°（min）（CR≥10） |
|
| response time |
8ms |
|
| configuration |
CPU |
RK3288 quad core 1.8HZ |
| GPU |
Mali-764 |
|
| RAM |
DDR-3 2GB |
|
| ROM |
16GB NAND Flash |
|
| operating system |
Based on Android 7.1 |
|
| decode |
resolution |
MAX 2060P |
| Video encapsulation |
RM/RMVB, MKV, MP4, TS, FLV, AVI, VOB, MOV, WMV, etc |
|
| Video Coding |
MPEG-1/2/4, H.263, H.264, WMV9, RV8/9/10, Divx-3/4/5, etc |
|
| audio coding |
MP3, WMA, WAV, EAAC, APE, FLAC, BSAC, OGG, etc |
|
| Image encoding |
JPG, PNG, BMP, etc |
|
| Touch IC |
Touch Control Solution |
G G |
| Touch point count |
ten o'clock |
|
| response speed |
＜6MS |
|
| Minimum touch object |
＞2MM |
|
| Touch accuracy |
±2MM |
|
| Gravity free touch control |
support |
|
| Anti occlusion touch control |
support |
|
| Touch frequency |
More than 50000000 times |
|
| Touching objects |
Electromagnetic pens, fingers, and other conductive objects |
|
| sound |
built-in |
Built in high fidelity 8 Ω 5W speakers * 2 |
| network |
Ethernet |
100/1000Mbps adaptive |
| WIFI |
Wireless protocol 802.11b/g/n |
|
| 4G (optional) |
Support the three network standards of China Mobile, China Unicom, and China Telecom |
|
| interface |
TF card |
1 * Standard TF card interface, supporting up to 32GB |
| USB |
2*USB2.0 |
|
| HDMI |
1*HDMI OUT |
|
| network |
1*RJ45 |
|
| power supply |
working voltage |
AC110V/220V 50/60Hz |
| Maximum power consumption |
50W |
|
| standby power |
0.5W |
|
| Usage environment |
operation temperature |
0~50° |
| storage temperature |
-10~60° |
|
| relative humidity |
10~80RH without condensation |
|

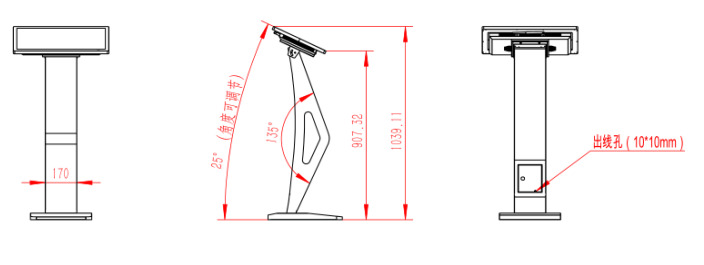

4. Product size (unit: mm)
PE: The product size is for reference only, and the actual shipping structure size diagram shall prevail
5. Product Display
6. Application scenarios
7. Instructions for use
To ensure the normal use of this product and prevent accidents such as electric shock or fire, please read and understand all usage requirements and operating procedures before using this product. Strictly adhere to the following requirements:
The power required for this product is generated by an AC power source, please pay attention to the input voltage standard when connecting.
The AC power socket should be well grounded and able to withstand sufficient product current requirements.
This product is designed for indoor use and cannot be used in outdoor environments
This product itself does not have waterproof performance, please do not directly put it into water or place it in areas that can be directly touched by rainwater
Be careful to avoid excessive moisture and dust to prevent circuit corrosion from causing malfunctions and affecting the lifespan of this product.
All output and input sockets should be operated in the event of a power outage
This product meets safety standards when used indoors at room temperature, but should be avoided from direct sunlight or other heat sources to prevent excessive temperature from affecting product stability.
If this product is not used for a long time, please unplug the power.
8. Random attachments and others
| type |
Description/Explanation |
| attachment |
Power cord 1.5M * 1 |
| Remote control * 1 |
|
| Warranty card * 1 |
|
| Certificate of conformity * 1 |
|
| WIFI antenna * 1 |
|
| K-type base * 1 |
|
| Installation method |
K-type base fixation |
